产品详情
代 号
|
法兰型号
|
软 管 HOSE BORE
|

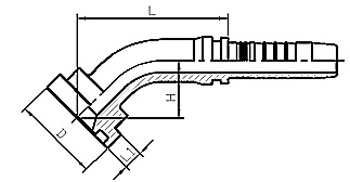

尺寸 DIMENSIONS
|
PART NO.
|
FLANGE SIZE
|
公称内径 DN
|
标号 DASH
|
L
|
D
|
L1
|
H
|
87311-08-08
|
1/2''
|
13
|
08
|
55.5
|
30.2
|
6.73
|
23
|
87311-12-08
|
3/4''
|
13
|
08
|
59
|
38.1
|
6.73
|
24
|
87311-12-10
|
3/4''
|
16
|
10
|
64.5
|
38.1
|
6.73
|
25
|
87311-12-12
|
3/4''
|
19
|
12
|
71
|
38.1
|
6.73
|
28
|
87311-12-16
|
3/4''
|
25
|
16
|
82.5
|
38.1
|
6.73
|
29.5
|
87311-16-12
|
1''
|
19
|
12
|
71
|
44.4
|
8
|
28
|
87311-16-16
|
1''
|
25
|
16
|
82
|
44.4
|
8
|
29.4
|
87311-16-20
|
1''
|
32
|
20
|
94.5
|
44.4
|
8
|
33.8
|
87311-20-16
|
1.1/4''
|
25
|
16
|
82
|
50.8
|
8
|
31
|
87311-20-20
|
1.1/4''
|
32
|
20
|
94.5
|
50.8
|
8
|
33.8
|
87311-24-20
|
1.1/2''
|
32
|
20
|
94.5
|
60.3
|
8
|
33.8
|
87311-24-24
|
1.1/2''
|
38
|
24
|
110
|
60.3
|
8
|
40.4
|
87311-32-24
|
2''
|
38
|
24
|
110
|
71.4
|
9.53
|
40.4
|
87311-32-32
|
2''
|
51
|
32
|
127
|
71.4
|
9.53
|
46.3
|
注:1.上述代号用于编织软管。2.如需用于缠绕软管代号改为87342-XX-XX。
NOTE:1.For use with braided hoses.2.If use spiral hoses, hose fitting series number is 87342-XX-XX.
