产品详情
|

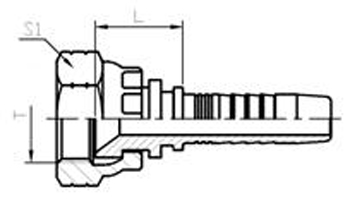

代 号
|
螺纹 T
|
软 管 HOSE BORE
|
尺寸 DIMENSIONS
|
|
PART NO.
|
THREAD T
|
公称内径 DN
|
标号 DASH
|
L
|
S1
|
|
26711-04-04
|
7/16＂X20
|
6
|
04
|
15
|
14
|
|
26711-05-04
|
1/2＂X20
|
6
|
04
|
15.5
|
17
|
|
26711-05-05
|
1/2＂X20
|
8
|
05
|
15.5
|
17
|
|
26711-06-04T
|
9/16＂X18
|
6
|
04
|
15.5
|
19
|
|
26711-06-05
|
9/16＂X18
|
8
|
05
|
15.5
|
19
|
|
26711-06-06
|
9/16＂X18
|
10
|
06
|
15.5
|
19
|
|
26711-07-06
|
5/8＂X18
|
10
|
06
|
16.5
|
22
|
|
26711-08-06T
|
3/4＂X16
|
10
|
06
|
18
|
24
|
|
26711-08-08
|
3/4＂X16
|
13
|
08
|
18
|
24
|
|
26711-08-10
|
3/4＂X16
|
16
|
10
|
19
|
24
|
|
26711-10-08T
|
7/8＂X14
|
13
|
08
|
19
|
27
|
|
26711-10-10
|
7/8＂X14
|
16
|
10
|
20
|
27
|
|
26711-10-12
|
7/8＂X14
|
19
|
12
|
20
|
27
|
|
26711-12-08T
|
1.1/16＂X12
|
12
|
08
|
20
|
32
|
|
26711-12-10T
|
1.1/16＂X12
|
16
|
10
|
21.5
|
32
|
|
26711-12-12
|
1.1/16＂X12
|
19
|
12
|
21.5
|
32
|
|
26711-14-12T
|
1.3/16＂X12
|
19
|
12
|
21.5
|
36
|
|
26711-16-12T
|
1.5/16＂X12
|
19
|
12
|
22
|
41
|
|
26711-16-16
|
1.5/16＂X12
|
25
|
16
|
23
|
41
|
|
26711-20-16T
|
1.5/8＂X12
|
25
|
16
|
25
|
50
|
|
26711-20-20
|
1.5/8＂X12
|
32
|
20
|
26
|
50
|
|
26711-24-20T
|
1.7/8＂X12
|
32
|
20
|
26
|
55
|
|
26711-24-24
|
1.7/8＂X12
|
38
|
24
|
26.5
|
55
|
|
26711-32-24T
|
2.1/2＂X12
|
38
|
24
|
26.5
|
75
|
|
26711-32-32
|
2.1/2＂X12
|
51
|
32
|
27
|
75
|
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为26712-XX-XX。
NOTE:1.For use with braided hoses.2.If use spiral hoses, hose fitting series number is 267112-XX-XX
