产品详情

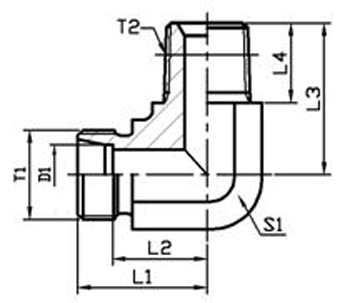

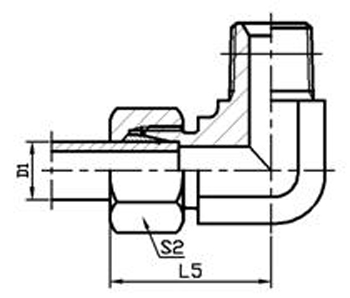

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	D1	L1	L2	L3	L4	L5	S1	S2
L	1CT9-12-02SP	M12X1.5	R1/8′′X28	06	19	12	20	9.5	27	12	14	30	315
	1CT9-12-04SP	M12X1.5	R1/4′′X19	06	21	14	26	12	29	12	14	47	315
	1CT9-14-02SP	M14X1.5	R1/8′′X28	08	21	14	26	9.5	29	14	17	49	315
	1CT9-14-04SP	M14X1.5	R1/4′′X19	08	21	14	26	14	29	14	17	46	315
	1CT9-16-04SP	M16X1.5	R1/4′′X19	10	22	15	27	14	30	17	19	61	315
	1CT9-18-04SP	M18X1.5	R1/4′′X19	12	24	17	27	14	32	19	22	80	315
	1CT9-18-06SP	M18X1.5	R3/8′′X19	12	24	17	28	14	32	19	22	88	315
	1CT9-18-08SP	M18X1.5	R1/2′′X14	12	28	21	34	14	36	19	22	89	315
	1CT9-22-08SP	M22X1.5	R1/2′′X14	15	28	21	34	14	36	22	27	94	315
	1CT9-26-08SP	M26X1.5	R1/2′′X14	18	31	23.5	36	17	40	27	32	141	315
S	1DT9-14-06SP	M14X1.5	R3/8′′X19	06	25	18	20	12	33	19	17	61	400
	1DT9-14-04SP	M14X1.5	R1/4′′X19	06	23	16	26	14	31	14	17	56	400
	1DT9-16-04SP	M16X1.5	R1/4′′X19	08	24	17	27	14	32	17	19	73	400
	1DT9-18-04SP	M18X1.5	R1/4′′X19	10	25	17.5	28	14	34	19	22	59	400
	1DT9-18-06SP	M18X1.5	R3/8′′X19	10	25	17.5	28	14	34	19	22	104	400
	1DT9-18-08SP	M18X1.5	R1/2′′X14	10	30	22.5	32	14	39	22	22	98	400
	1DT9-20-06SP	M20X1.5	R3/8′′X19	12	29	21.5	28	14	38	19	24	126	400
	1DT9-20-08SP	M20X1.5	R1/2′′X14	12	30	22.5	32	14	39	24	24	97	400
	1DT9-22-08SP	M22X1.5	R1/2′′X14	14	30	22	32	14	40	22	27	101	400
	1DT9-24-08SP	M24X1.5	R1/2′′X14	16	33	24.5	32	17	43	24	30	150	400

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CT9-30-12SP/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example1CT9-30-12SP/RN.
