产品详情

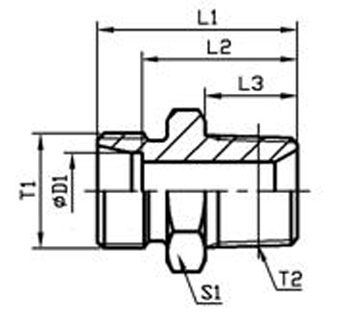

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS						重量 克/件	工作压力 (bar)
		T1	T2	D1	L1	L2	L3	L4	S1	S2
L	1CT-12-02SP	M12X1.5	R1/8′′X28	06	22	15	8	30	12	14	11	315
	1CT-12-04SP	M12X1.5	R1/4′′X19	06	27	20	12	35	17	14	24	315
	1CT-14-02SP	M14X1.5	R1/8′′X28	08	23	16	8	31	17	17	15	315
	1CT-14-04SP	M14X1.5	R1/4′′X19	08	27	20	12	35	17	17	22	315
	1CT-16-04SP	M16X1.5	R1/4′′X19	10	28	21	12	36	17	19	24	315
	1CT-18-04SP	M18X1.5	R1/4′′X19	12	29	22	12	37	19	22	53	315
	1CT-18-06SP	M18X1.5	R3/8′′X19	12	29	22	12	37	19	22	33	315
	1CT-18-08SP	M18X1.5	R1/2′′X14	12	31	24	14	39	24	22	53	315
	1CT-22-06SP	M22X1.5	R3/8′′X19	15	30	23	12	38	24	27	49	315
	1CT-22-08SP	M22X1.5	R1/2′′X14	15	32	25	14	40	24	27	59	315
	1CT-26-08SP	M26X1.5	R1/2′′X14	18	33	25.5	14	42	27	32	64	315
	1CT-30-12SP	M30X2	R3/4′′X14	22	37	29.5	16	46	32	36	99	160
	1CT-36-16SP	M36X2	R1′′X11	28	40	32.5	18	49	41	41	154	160
	1CT-45-20SP	M45X2	R1.1/4′′X11	35	45	34.5	20	56	46	50	238	160
	1CT-52-24SP	M52X2	R1.1/2′′X141	425	49	38	22	61	55	60	335	160

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CT-30-12SP/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example11CT-30-12SP/RN.
