产品详情

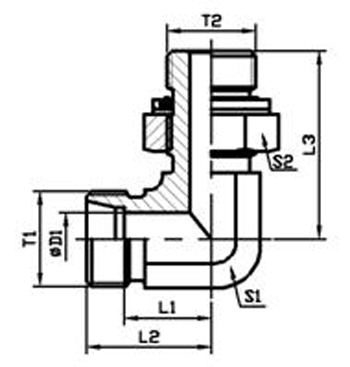

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	D1	L1	L2	L3	L4	S1	S2	S3
L	1CH9-12-10OG	M12X1.5	M10X1	06	14	21	27	29	14	14	14	33	315
	1CH9-14-12OG	M14X1.5	M12X1.5	08	16	23	32	31	14	17	17	52	315
	1CH9-16-14OG	M16X1.5	M14X1.5	10	17	24	35	32	19	19	19	66	315
	1CH9-18-16OG	M18X1.5	M16X1.5	12	19	26	36	34	19	22	22	91	250
	1CH9-22-18OG	M22X1.5	M18X1.5	15	21	28	41	36	22	24	27	132	250
	1CH9-26-22OG	M26X1.5	M22X1.5	18	24	31.5	45	40	27	27	32	197	250
	1CH9-30-27OG	M30X2	M27X2	22	28	35.5	49	44	30	32	36	302	160
	1CH9-36-33OG	M36X2	M33X2	28	31	38.5	52	47	36	41	41	466	160
S	1DH9-14-12OG	M14X1.5	M12X1.5	06	15	22	32	30	14	17	17	54	315
	1DH9-16-14OG	M16X1.5	M16X1.5	08	17	24	36	32	19	19	19	68	315
	1DH9-18-16OG	M18X1.5	M16X1.5	10	18	25.5	38	34	19	22	22	93	250
	1DH9-20-18OG	M20X1.5	M18X1.5	12	22	29.5	43	38	22	24	24	126	250
	1DH9-22-20OG	M22X1.5	M20X1.5	14	22	30	40	40	22	27	27	161	250
	1DH9-24-22OG	M24X1.5	M22X1.5	16	25	33.5	49	43	27	27	30	183	250
	1DH9-30-27OG	M30X2	M27X2	20	28	38.5	55	49	30	32	36	309	250
	1DH9-36-33OG	M36X2	M33X2	25	30	42	60	54	36	41	46	487	250
	1DH9-42-42OG	M42X2	M42X2	30	36	49.5	68	62	46	50	50	773	160

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CH9-30-27OG/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example1CH9-30-27OG/RN.
