产品详情

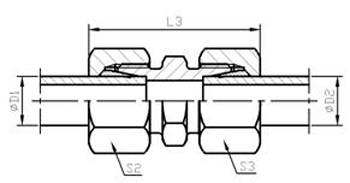

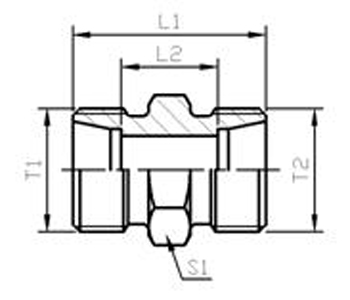

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS					重量 克/件	工作压力 (bar)
		T1	T2	D1、D2	L1	L2	L3	S1	S2、S3
L	1C-12	M12X1.5	M12X1.5	06	24	10	39	12	14	12	500
	1C-14	M14X1.5	M14X1.5	08	25	11	40	14	17	16	500
	1C-16	M16X1.5	M16X1.5	10	27	13	42	17	19	23	500
	1C-18	M18X1.5	M18X1.5	12	28	14	43	19	22	28	400
	1C-22	M22X1.5	M22X1.5	15	30	16	46	24	27	51	400
	1C-26	M26X1.5	M26X1.5	18	31	16	48	27	32	69	400
	1C-30	M30X2	M30X2	22	35	20	52	32	36	90	250
	1C-36	M36X2	M36X2	28	36	21	54	41	41	137	250
	1C-45	M45X2	M45X2	35	41	20	63	46	50	214	250
	1C-52	M52X2	M52X2	42	43	21	66	55	60	296	250
S	1D-14	M14X1.5	M14X1.5	06	30	16	45	14	17	26	800
	1D-16	M16X1.5	M16X1.5	08	32	18	47	17	19	37	800
	1D-18	M18X1.5	M18X1.5	10	32	17	49	19	22	44	800
	1D-20	M20X1.5	M20X1.5	12	34	19	51	22	24	60	630
	1D-22	M22X1.5	M22X1.5	14	38	22	57	24	27	77	630
	1D-24	M24X2	M24X2	16	38	21	57	27	30	90	630
	1D-30	M30X2	M30X2	20	44	23	66	32	36	143	420
	1D-36	M36X2	M36X2	25	50	26	74	41	46	251	420
	1D-42	M42X2	M42X2	30	54	27	80	46	50	330	420
	1D-52	M52X2	M52X2	38	61	29	90	55	60	545	420

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1C-30/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example1C-30/RN.
