产品详情

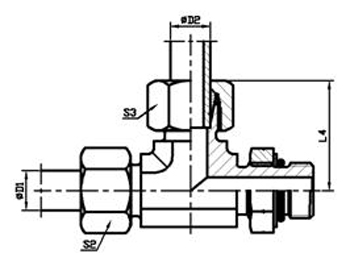

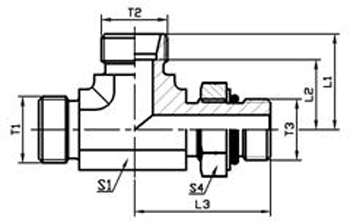

系列	代号 PART NO.	螺纹 THREAD			管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	T3	D1、D2	L1	L2	L3	L4	S1	S2、S3	S4
L	ACCO-12-12-04OG	M12X1.5	M12X1.5	7/16′′X20	06	21	14	29	29	14	14	14	53	315
	ACCO-14-14-06OG	M14X1.5	M14X1.5	9/16′′X18	08	22.5	15.5	31.8	30.5	14	17	17	72	250
	ACCO-16-16-06OG	M16X1.5	M16X1.5	9/16′′X18	10	24	17	34	32	19	19	17	72	250
	ACCO-18-18-08OG	M18X1.5	M18X1.5	3/4′′X16	12	26	19	38	34	19	22	22	142	250
	ACCO-22-22-10OG	M22X1.5	M22X1.5	7/8′′X14	15	28	21	43	36	22	27	27	212	200
	ACCO-26-26-12OG	M26X1.5	M26X1.5	1.1/16′′X12	18	31.5	24	49	40	30	32	32	333	200
	ACCO-30-30-12OG	M30X2	M30X2	1.1/16′′X12	22	35.5	28	53	44	30	36	32	410	200
	ACCO-36-36-16OG	M36X2	M36X2	1.5/16′′X12	28	38.5	31	59	47	36	41	41	642	160
	ACCO-45-45-20OG	M45X2	M45X2	1.5/8′′X12	35	48.5	38	63	59	46	50	50	1047	125
S	ADDO-14-14-04OG	M14X1.5	M14X1.5	7/16′′X20	06	22	15	32	30	14	17	14	66	400
	ADDO-16-16-06OG	M16X1.5	M16X1.5	9/16′′X18	08	24	17	37	32	19	19	17	92	400
	ADDO-18-18-06OG	M18X1.5	M18X1.5	9/16′′X18	10	25.5	18	38	34	19	22	17	110	400
	ADDO-20-20-08OG	M20X1.5	M20X1.5	3/4′′X16	12	28.5	21	44	38	22	24	22	167	400
	ADDO-22-22-10OG	M22X1.5	M22X1.5	7/8′′X14	14	31	23	44	41	22	27	27	220	400
	ADDO-24-24-10OG	M24X1.5	M24X1.5	7/8′′X14	16	33.5	25	50	43	27	30	27	263	400
	ADDO-30-30-12OG	M30X2	M30X2	1.1/16′′X12	20	38.5	28	56	49	30	36	32	423	400
	ADDO-36-36-16OG	M36X2	M36X2	1.5/16′′X12	25	42	30	69	56.8	36	46	41	678	315
	ADDO-42-42-20OG	M42X2	M42X2	1.5/8′′X12	30	49.5	36	69	62	46	50	50	1007	250

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如ACCO-30-30-12OG/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for exampleACCO-30-30-12OG/RN.
