产品详情

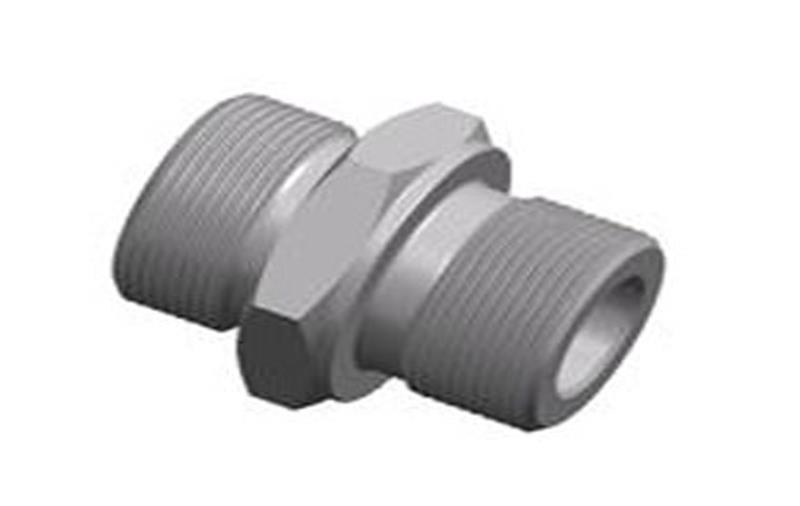

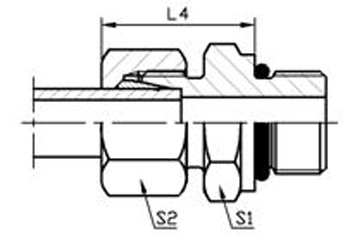

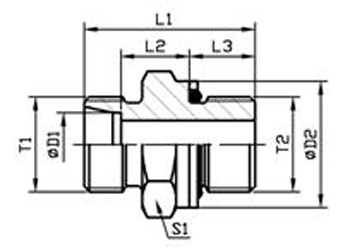

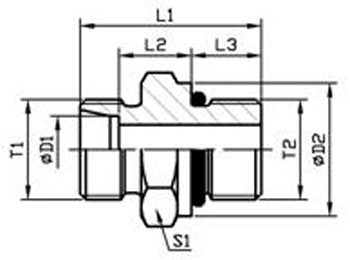

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	D1	D2	L1	L2	L3	L4	S1	S2
L	1CH-12-10	M12X1.5	M10X1	06	14	24	8.5	8.5	23	14	14	15	500
	1CH-14-12	M14X1.5	M12X1.5	08	14	28	10	11	25	17	17	23	500
	1CH-16-14	M16X1.5	M14X1.5	10	19	29	11	11	26	19	19	28	500
	1CH-16	M16X1.5	M16X1.5	10	22	31	12.5	11.5	27.5	22	22	40	420
	1CH-18-16	M18X1.5	M16X1.5	12	22	31	12.5	11.5	27	22	22	42	400
	1CH-18	M18X1.5	M18X1.5	12	24	33	13.5	12.5	28	24	22	51	400
	1CH-22-18	M22X1.5	M18X1.5	15	24	33	13.5	12.5	29	24	27	56	400
	1CH-22	M22X1.5	M22X1.5	15	27	34.5	14.5	13	30	27	27	74	400
	1CH-26-22	M26X1.5	M22X1.5	18	27	35	14.5	13	31	27	32	80	400
	1CH-26	M26X1.5	M26X1.5	18	31.9	38	14.5	16	31	32	32	108	400
	1CH-30-26	M30X2	M26X1.5	22	31.9	40	16.5	16	33	32	36	107	250
	1CH-30-27	M30X2	M27X2	22	32	40	16.5	16	33	32	36	104	250
	1CH-36-33	M36X2	M33X2	28	41	41	17.5	16	34	41	41	171	250
	1CH-45-42	M45X2	M42X2	35	50	44	17.5	16	39	50	50	278	250
	1CH-52-48	M52X2	M48X2	42	55	47.5	19	17.5	42	55	60	340	250
S	1DH-14-12	M14X1.5	M12X1.5	06	17	31	13	11	28	17	17	29	800
	1DH-16-14	M16X1.5	M14X1.5	08	19	33	15	11	30	19	19	37	800
	1DH-16	M16X1.5	M16X1.5	08	22	35	15	12.5	31	22	19	50	800
	1DH-18-16	M18X1.5	M16X1.5	10	22	35	15	12.5	31	22	22	55	800
	1DH-18	M18X1.5	M18X1.5	10	24	38.5	17	14	33	24	22	71	630
	1DH-20-18	M20X1.5	M18X1.5	12	24	38.5	17	14	33	24	24	73	630
	1DH-24-22	M24X1.5	M22X1.5	16	27	42	18.5	15	37	27	30	102	630
	1DH-30-27	M30X2	M27X2	20	32	49.5	20.5	18.5	42	32	36	169	420
	1DH-36-33	M36X2	M33X2	25	41	53.5	23	18.5	47	41	46	274	420
	1DH-42	M42X2	M42X2	30	50	56	23	19	50	50	50	412	420
	1DH-52-48	M52X2	M52X2	38	55	63.5	26	21.5	57	55	60	580	420

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CH-30-27/RN;需配挡圈请在代号后加“DQ”，如1CH-30-27DQ。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CH-30-27RN；with retainer ring please insert suffix"DQ"after our part NO,for example 1CH-30-27DQ.
