产品详情

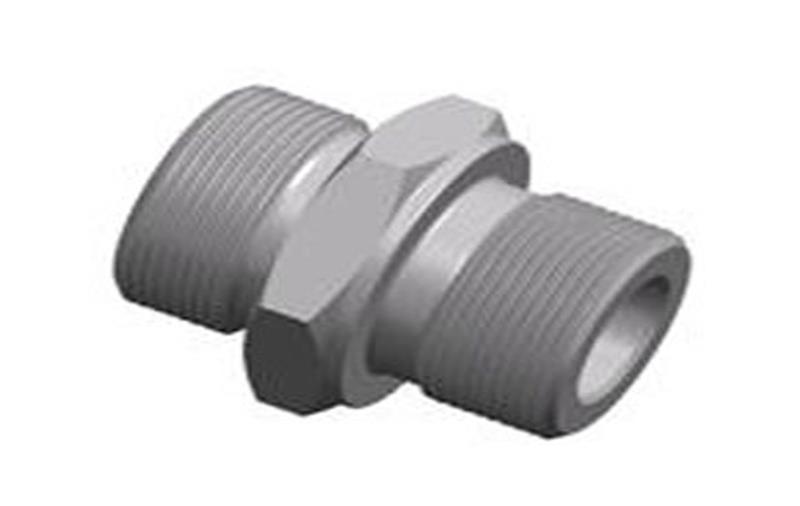

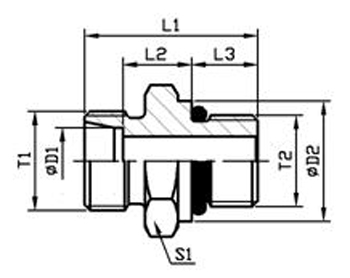

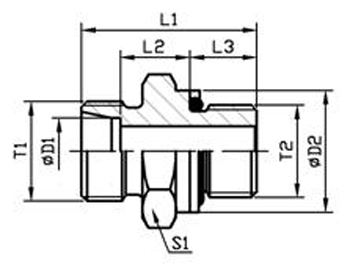

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	D1	D2	L1	L2	L3	L4	S1	S2
L	1CG-12-02	M12X1.5	G1/8＂X28	06	14	23.5	8.5	8	23	14	14	14	315
	1CG-12-04	M12X1.5	G1/4＂X19	06	18	29	10	12	25	19	14	60	315
	1CG-12-06	M12X1.5	G3/8＂X19	06	22	30.5	11.5	12	26	22	14	45	315
	1CG-12-08	M12X1.5	G1/2＂X14	06	26	33	12	14	27	27	14	60	315
	1CG-14-02	M14X1.5	G1/8＂X28	08	14	23.5	8.5	8	23	14	17	16	315
	1CG-14-04	M14X1.5	G1/4＂X19	08	18	29	10	12	25	19	17	26	315
	1CG-14-06	M14X1.5	G3/8＂X19	08	22	30.5	11.5	12	26	22	17	44	315
	1CG-14-08	M14X1.5	G1/2＂X14	08	26	33	12	14	27	27	17	74	315
	1CG-16-02	M16X1.5	G1/8＂X28	10	14	25.5	10.5	8	25	17	19	21	315
	1CG-16-04	M16X1.5	G1/4＂X19	10	18	30	11	12	26	19	19	31	315
	1CG-16-06	M16X1.5	G3/8＂X19	10	22	31.5	12.5	12	27	22	19	44	315
	1CG-16-08	M16X1.5	G1/2＂X14	10	26	34	13	14	28	27	19	72	315
	1CG-18-02	M18X1.5	G1/8＂X28	12	14	26.5	11.5	8	26	19	22	27	315
	1CG-18-04	M18X1.5	G1/4＂X19	12	18	31	12	12	27	19	22	32	315
	1CG-18-06	M18X1.5	G3/8＂X19	12	22	31.5	12.5	12	27	22	22	43	315
	1CG-18-08	M18X1.5	G1/2＂X14	12	26	34	13	14	28	27	22	67	315
	1CG-18-12	M18X1.5	G3/4＂X14	12	32	37	14	16	29	32	22	120	315
	1CG-22-06	M22X1.5	G3/8＂X19	15	22	32.5	13.5	12	29	24	27	56	250
	1CG-22-08	M22X1.5	G1/2＂X14	15	26	35	14	14	29	27	27	72	250
	1CG-22-12	M22X1.5	G3/4＂X14	15	32	38	15	16	30	32	27	118	250
	1CG-26-06	M26X1.5	G3/8＂X19	18	22	33.5	14	12	29.5	27	32	69	250
	1CG-26-08	M26X1.5	G1/2＂X14	18	26	36	14.5	14	31	27	32	72	250
	1CG-26-12	M26X1.5	G3/4＂X14	18	32	38	14.5	16	30	32	32	112	250
	1CG-30-08	M30X2	G1/2＂X14	22	26	38	16.5	14	33	32	36	91	160
	1CG-30-12	M30X2	G3/4＂X14	22	32	40	16.5	16	33	32	36	103	160
	1CG-30-16	M30X2	G1＂X11	22	39	43	17.5	18	33.5	41	36	184	160
	1CG-36-12	M36X2	G3/4＂X14	28	32	41	17.5	16	34	41	41	156	160
	1CG-36-16	M36X2	G1＂X11	28	39	43	17.5	18	34	41	41	168	160
	1CG-36-20	M36X2	G1.1/4＂X11	28	50	46	18.3	20	35	50	41	314	160
	1CG-45-12	M45X2	G3/4＂X11	35	32	44	17.5	16	39	46	50	202	160
	1CG-45-16	M45X2	G1＂X11	35	39	46	17.5	18	39	46	50	234	160
	1CG-45-20	M45X2	G1.1/4＂X11	35	50	48	17.5	20	39	50	50	276	160
	1CG-45-24	M45X2	G1.1/2＂X11	35	55	52	19.5	22	41	55	50	355	160
	1CG-52-16	M52X2	G1＂X11	42	39	48	19	18	42	55	60	327	160
	1CG-52-20	M52X2	G1.1/4＂X11	42	49	50	19	20	42	55	60	336	160
	1CG-52-24	M52X2	G1.1/2＂X11	42	55	52	19	22	42	55	60	349	160
S	1DG-14-02	M14X1.5	G1/8＂X28	06	14	27.5	12.5	8	27	14	17	22	400
	1DG-14-04	M14X1.5	G1/4＂X19	06	18	32	13	12	28	19	17	35	400
	1DG-14-06	M14X1.5	G3/8＂X19	06	22	34.5	15.5	12	30	22	17	57	400
	1DG-14-08	M14X1.5	G1/2＂X14	06	26	39	18	14	33	27	17	83	400
	1DG-16-04	M16X1.5	G1/4＂X19	08	18	34	15	12	30	19	19	41	400
	1DG-16-06	M16X1.5	G3/8＂X19	08	22	34.5	15.5	12	30	22	19	59	400
	1DG-16-08	M16X1.5	G1/2＂X14	08	26	39	18	14	33	27	19	100	400
	1DG-18-04	M18X1.5	G1/4＂X19	10	18	34	14.5	12	31	19	22	43	400
	1DG-18-06	M18X1.5	G3/8＂X19	10	22	34.5	15	12	31	22	22	56	400
	1DG-18-08	M18X1.5	G1/2＂X14	10	26	39	17.5	14	34	27	22	97	400
	1DG-20-04	M20X1.5	G1/4＂X19	12	18	36	16.5	12	33	22	24	57	400
	1DG-20-06	M20X1.5	G3/8＂X19	12	22	36.5	17	12	33	22	24	62	400
	1DG-20-08	M20X1.5	G1/2＂X14	12	26	39	17.5	14	34	27	24	57	400
	1DG-22-06	M22X1.5	G3/8＂X19	14	22	38.5	18.5	12	36	24	27	74	400
	1DG-22-08	M22X1.5	G1/2＂X14	14	26	41	19	14	37	27	27	96	400
	1DG-24-06	M24X1.5	G3/8＂X19	16	22	38.5	18	12	36	27	30	83	400
	1DG-24-08	M24X1.5	G1/2＂X14	16	26	41	18.5	14	37	27	30	92	400
	1DG-24-12	M24X1.5	G3/4＂X14	16	32	45	20.5	16	39	32	30	157	400
	1DG-30-08	M30X2	G1/2＂X14	20	26	45	20.5	14	42	32	36	142	400
	1DG-30-12	M30X2	G3/4＂X14	20	32	47	20.5	16	42	32	36	151	400
	1DG-30-16	M30X2	G1＂X11	20	39	51	22.5	18	44	41	36	273	250
	1DG-30-20	M30X2	G1.1/4＂X11	20	49	53	22.5	20	44	50	36	387	160
	1DG-36-12	M36X2	G3/4＂X14	25	32	51	23	16	47	41	46	245	250
	1DG-36-16	M36X2	G1＂X11	25	39	53	23	18	47	41	46	267	250
	1DG-36-20	M36X2	G1.1/4＂X11	25	49	55	23	20	47	50	46	422	160
	1DG-42-16	M42X2	G1＂X11	30	39	55	23.5	18	50	46	50	337	160
	1DG-42-20	M42X2	G1.1/4＂X11	30	49	57	23.5	20	50	50	50	422	160
	1DG-52-20	M52X2	G1.1/4＂X11	38	49	62	26	20	57	55	60	578	160
	1DG-52-24	M52X2	G1.1/2＂X11	38	55	64	26	22	57	55	60	560	160

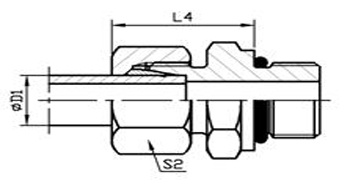

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CG-30-12/RN;需配挡圈请在代号后加“DQ”，如1CG-30-12DQ。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CG-30-12RN；with retainer ring please insert suffix"DQ"after our part NO,for example 1CG-30-12DQ.
