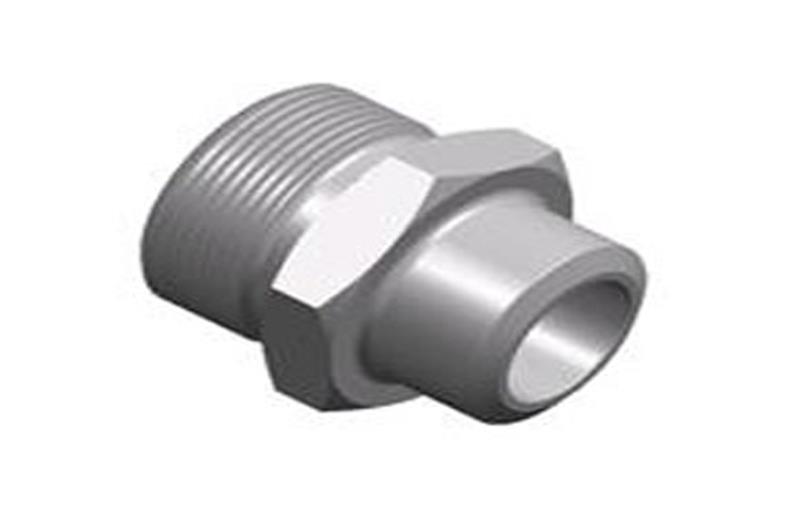

产品详情

系列	代号 PART NO.	螺纹 THREAD	管子外径 TUBE O.D	尺寸 DIMENSIONS						重量 克/件	工作压力 (bar)
		T1	D1	D	L1	L2	L3	S1	S2
L	1CW-12-06	M12X1.5	06	10	21	14	29	12	14	11	315
	1CW-14-08	M14X1.5	08	12	23	16	31	14	17	15	315
	1CW-16-10	M16X1.5	10	14	25	18	33	17	19	22	315
	1CW-18-12	M18X1.5	12	16	25	18	33	19	22	25	315
	1CW-22-15	M22X1.5	15	19	29	22	37	24	27	44	315
	1CW-26-18	M26X1.5	18	22	31	23.5	40	27	32	67	315
	1CW-30-22	M30X2	22	27	36	28.5	45	32	36	98	160
	1CW-36-28	M36X2	28	32	38	30.5	47	41	41	165	160
	1CW-45-35	M45X2	35	40	43	32.5	54	46	50	232	160
	1CW-52-42	M52X2	42	46	46	35	58	55	60	342	160
S	1DW-14-06	M14X1.5	06	11	26	19	34	14	17	21	630
	1DW-16-08	M16X1.5	08	13	28	21	36	17	19	31	630
	1DW-18-10	M18X1.5	10	15	30	22.5	39	19	22	41	630
	1DW-20-12	M20X1.5	12	17	32	24.5	41	22	24	93	630
	1DW-22-14	M22X1.5	14	19	35	27	45	24	27	55	630
	1DW-24-16	M24X1.5	16	21	35	26.5	45	27	30	82	400
	1DW-30-20	M30X2	20	26	40	29.5	51	32	36	131	400
	1DW-36-25	M36X2	25	31	44	32	56	41	46	219	400
	1DW-42-30	M42X2	30	36	49	35.5	62	46	50	297	400
	1DW-52-38	M52X2	38	44	54	38	69	55	60	448	315

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CW-30-22/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CW-30-22/RN.
