产品详情

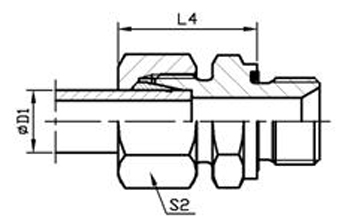

系列	代号 PART NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量 克/件	工作压力 (bar)
		T1	T2	D1	D2	L1	L2	L3	L4	S1	S2
L	1CB-12-02WD	M12X1.5	G1/8＂X28	06	14	23.5	8.5	8	23	14	14	13	500
	1CB-12-04WD	M12X1.5	G1/4＂X19	06	19	29	10	12	25	19	14	28	500
	1CB-12-06WD	M12X1.5	G3/8＂X19	06	22	30.5	11.5	12	26	22	14	44	420
	1CB-12-08WD	M12X1.5	G1/2＂X14	06	27	33	12	14	27	27	14	61	400
	1CB-14-02WD	M14X1.5	G1/8＂X28	08	14	24.5	9.5	8	24	14	17	16	500
	1CB-14-04WD	M14X1.5	G1/4＂X19	08	19	29	10	12	25	19	17	27	500
	1CB-14-06WD	M14X1.5	G3/8＂X19	08	22	30.5	11.5	12	26	22	17	45	420
	1CB-14-08WD	M14X1.5	G1/2＂X14	08	27	33	12	14	27	27	17	74	400
	1CB-16-02WD	M16X1.5	G1/8＂X28	10	14	25.5	10.5	8	25	17	19	21	500
	1CB-16-04WD	M16X1.5	G1/4＂X19	10	19	30	11	12	26	19	19	29	500
	1CB-16-06WD	M16X1.5	G3/8＂X19	10	22	31.5	12.5	12	27	22	19	43	420
	1CB-16-08WD	M16X1.5	G1/2＂X14	10	27	34	13	14	28	27	19	71	400
	1CB-18-02WD	M18X1.5	G1/8＂X28	12	14	26.5	11.5	8	26	19	22	26	420
	1CB-18-04WD	M18X1.5	G1/4＂X19	12	19	31	12	12	27	19	22	31	400
	1CB-18-06WD	M18X1.5	G3/8＂X19	12	22	31.5	12.5	12	27	22	22	41	420
	1CB-18-08WD	M18X1.5	G1/2＂X14	12	27	34	13	14	28	27	22	67	400
	1CB-18-12WD	M18X1.5	G3/4＂X14	12	32	37	14	16	29	32	22	118	250
	1CB-22-06WD	M22X1.5	G3/8＂X19	15	22	32.5	13.5	12	29	24	27	54	400
	1CB-22-08WD	M22X1.5	G1/2＂X14	15	27	35	14	14	29	27	27	72	400
	1CB-22-12WD	M22X1.5	G3/4＂X14	15	32	38	15	16	30	32	27	116	250
	1CB-26-06WD	M26X1.5	G3/8＂X19	18	22	33.5	14	12	30	27	32	66	400
	1CB-26-08WD	M26X1.5	G1/2＂X14	18	27	36	14.5	14	31	27	32	71	400
	1CB-26-12WD	M26X1.5	G3/4＂X14	18	32	38	14.5	16	31	32	32	110	250
	1CB-30-08WD	M30X2	G1/2＂X14	22	27	38	16.5	14	33	32	36	91	250
	1CB-30-12WD	M30X2	G3/4＂X14	22	32	40	16.5	16	33	32	36	102	250
	1CB-30-16WD	M30X2	G1＂X11	22	40	43	17.5	18	34	41	36	189	250
	1CB-36-12WD	M36X2	G3/4＂X14	28	32	41	17.5	16	34	41	41	159	250
	1CB-36-16WD	M36X2	G1＂X11	28	40	43	17.5	18	34	41	41	170	250
	1CB-36-20WD	M36X2	G1.1/4＂X11	28	50	46	18.5	20	35	50	41	316	250
	1CB-45-16WD	M45X2	G1＂X11	35	40	46	17.5	18	39	46	50	226	250
	1CB-45-20WD	M45X2	G1.1/4＂X11	35	50	48	17.5	20	39	50	50	272	250
	1CB-45-24WD	M45X2	G1.1/2＂X11	35	55	52	19.5	22	41	55	50	423	250
	1CB-52-16WD	M52X2	G1＂X11	42	40	48	19	18	42	55	60	324	250
	1CB-52-20WD	M52X2	G1.1/4＂X11	42	50	50	19	20	42	55	60	348	250
	1CB-52-24WD	M52X2	G1.1/2＂X11	42	55	52	19	22	42	55	60	343	250
S	1DB-14-02WD	M14X1.5	G1/8＂X28	06	14	27.5	12.5	8	27	14	17	21	500
	1DB-14-04WD	M14X1.5	G1/4＂X19	06	19	32	13	12	28	19	17	35	800
	1DB-14-06WD	M14X1.5	G3/8＂X19	06	22	34.5	15.5	12	30	22	17	52	630
	1DB-14-08WD	M14X1.5	G1/2＂X14	06	27	39	18	14	33	27	17	83	630
	1DB-16-04WD	M16X1.5	G1/4＂X19	08	19	34	15	12	30	19	19	41	800
	1DB-16-06WD	M16X1.5	G3/8＂X19	08	22	34.5	15.5	12	30	22	19	57	800
	1DB-16-08WD	M16X1.5	G1/2＂X14	08	27	39	18	14	33	27	19	89	630
	1DB-18-04WD	M18X1.5	G1/4＂X19	10	19	34	14.5	12	31	19	22	42	800
	1DB-18-06WD	M18X1.5	G3/8＂X19	10	22	34.5	15	12	31	22	22	55	800
	1DB-18-08WD	M18X1.5	G1/2＂X14	10	27	39	17.5	14	34	27	22	97	630
	1DB-20-04WD	M20X1.5	G1/4＂X19	12	19	36	16.5	12	33	22	24	61	630
	1DB-20-06WD	M20X1.5	G3/8＂X19	12	22	36.5	17	12	33	22	24	62	630
	1DB-20-08WD	M20X1.5	G1/2＂X14	12	27	39	17.5	14	34	27	24	99	630
	1DB-22-06WD	M22X1.5	G3/8＂X19	14	22	38.5	18.5	12	36	24	27	74	420
	1DB-22-08WD	M22X1.5	G1/2＂X14	14	27	41	19	14	37	27	27	96	630
	1DB-22-12WD	M22X1.5	G3/4＂X14	14	32	45	21	16	39	32	27	138	630
	1DB-24-06WD	M24X1.5	G3/8＂X19	16	22	38.5	18	12	36	27	30	83	420
	1DB-24-08WD	M24X1.5	G1/2＂X14	16	27	41	18.5	14	37	27	30	91	420
	1DB-24-12WD	M24X1.5	G3/4＂X14	16	32	45	20.5	16	39	32	30	152	420
	1DB-30-08WD	M30X2	G1/2＂X14	20	27	45	20.5	14	42	32	36	142	420
	1DB-30-12WD	M30X2	G3/4＂X14	20	32	47	20.5	16	42	32	36	149	420
	1DB-30-16WD	M30X2	G1＂X11	20	40	51	22.5	18	44	41	36	265	420
	1DB-30-20WD	M30X2	G1.1/4＂X11	20	50	53	22.5	20	44	50	36	404	420
	1DB-36-08WD	M36X2	G1/2＂X14	25	27	49	23	14	47	41	46	228	420
	1DB-36-12WD	M36X2	G3/4＂X14	25	32	51	23	16	47	41	46	255	420
	1DB-36-16WD	M36X2	G1＂X11	25	40	53	23	18	47	41	46	266	420
	1DB-36-20WD	M36X2	G1.1/4＂X11	25	50	55	23	20	47	50	46	411	420
	1DB-36-24WD	M36X2	G1.1/2＂X11	25	55	60	26	22	50	55	46	549	315
	1DB-42-16WD	M42X2	G1＂X11	30	40	55	23.5	18	50	46	50	344	420
	1DB-42-20WD	M42X2	G1.1/4＂X11	30	50	57	23.5	20	50	50	50	418	420
	1DB-42-24WD	M42X2	G1.1/2＂X11	30	55	62	26.5	22	53	55	50	530	315
	1DB-52-20WD	M52X2	G1.1/4＂X11	38	50	62	26	20	57	55	60	575	420
	1DB-52-24WD	M52X2	G1.1/2＂X11	38	55	64	26	22	57	55	60	563	420

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CB-30-12WD/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut，it is necessary to insert suffix “RN”after our part NO，for example 1CB-30-12WD/RN.
