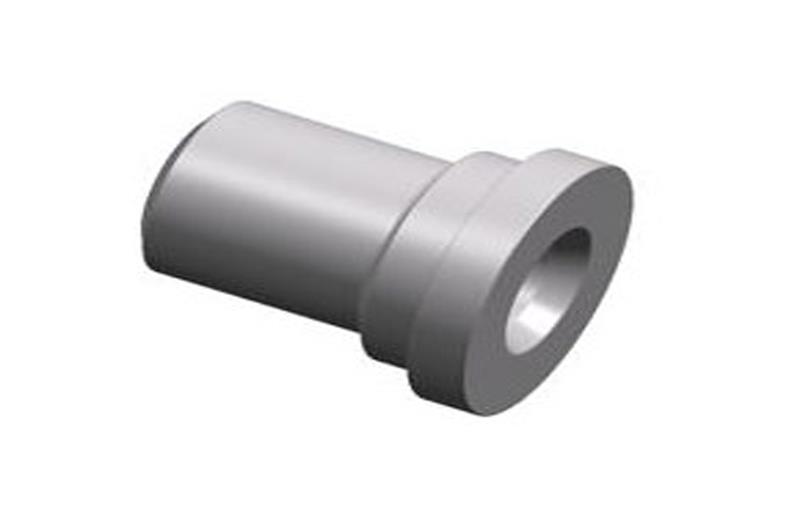

1FLW-PM\1FSW-PM
轻/重系列法兰ISO 6162-1/焊接管
L/S-SERIES FLANGE ISO 6162-1/BUTT-WELD TUBE

1FLW-PM/ZH\1FSW-PM/ZH

产品详情

代号
PART NO.

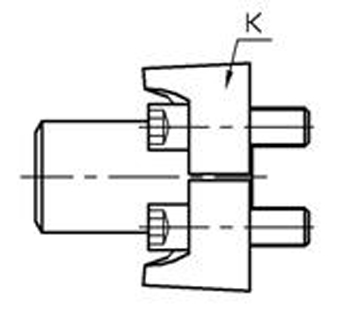

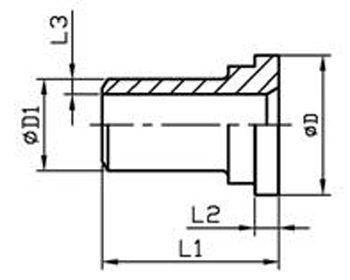

法兰型号 尺寸 DIMENSIONS 螺栓
BOLT
重量
克/件
工作压力 (bar)
FLANGE SIZE D1 L1 L2 L3 D K
3000PSI
1FLW-08-20X3.0PM
1FLW-08-21.3X2.6PM
1FLW-08-22X2.0PM
1/2′′
20
21.3
22
30
6.73
3.0
2.6
2.0
30.1
FL-08
M8X25
M8X25

M8X
345
1FLW-12-22X2.0PM
1FLW-12-25X3.0PM
1FLW-12-26.9X3.6PM
3/4′′
22
25
26.9
35
6.73
2.0
3.0
3.6
38.1
FL-12
M10X30
M10X30
M10X30
345
1FLW-16-30X4.0PM
1FLW-16-33.7X3.2PM
1FLW-16-35X4.0PM
1′′
30
33.7
35
40
8
4.0
3.2
4.0
44.4
FL-16
M10X30
M10X30
M10X30
345
1FLW-20-38X4.0PM
1FLW-20-42X3.0PM
1FLW-20-42.3X3.2PM
1.1/4′′
38
42
42.3
45
8
4.0
3.0
3.2
50.8
FL-20
M10X35
M10X35

M10X35
276
1FLW-24-38X4.0PM
1FLW-24-42X3.0PM
1FLW-24-48.3X4.5PM
1.1/2′′
38
42
48.3
50
8
4.0
3.0
4.5
60.3
FL-24
M12X35
M12X35

M12X35
207
1FLW-32-42.3X3.2PM
1FLW-32-48.3X3.2PM
1FLW-32-60.3X5.6PM
2′′
42.3
48.3
60.3
60
9.53
3.2
3.2
5.6
71
FL-32
M12X35

M12X35

M12X35
207
1FLW-48-76.1X3.6PM
1FLW-48-76.1X7.1PM
1FLW-48-88.9X3.6PM
3′′
76.1
76.1
88.9
70
9.53
3.6
7.1
3.6
101.6
FL-48
M16X45
M16X45

M16X45
138
1FLW-56-76.1X3.6PM
1FLW-56-88.9X3.6PM
3.1/2′′
76.1
88.9
80
11.23
3.6
3.6
114.3
FL-56
M16X45

M16X45
340
6000PSI
1FSW-08-16X2.5PM
1FSW-08-20X3.0PM
1FSW-08-21.3X4.5PM
1/2′′
16
20
21.3
40
7.75
2.5
3.0
4.5
31.7
FS-08
M8X30
M8X30

M8X30
414
1FSW-12-20X3.0PM
1FSW-12-26X4.0PM
1FSW-12-26.9X5.6PM
3/4′′
20
26
26.9
45
8.76
3.0
4.0
5.6
41.3
FS-12
M10X35
M10X35
M10X35
414
1FSW-16-25X4.0PM
1FSW-16-30X4.0PM
1FSW-16-33.7X7.1PM
1′′
25
30
33.7
50
9.53
4.0
4.0
7.1
47.6
FS-16
M12X45
M12X45
M12X45
414
1FSW-20-30X4.0PM
1FSW-20-38X5.0PM
1FSW-20-42.4X8.8PM
1.1/4′′
30
38
42.4
55
10.29
4.0
5.0
8.8
54
FS-20
M14X50
M14X50
M14X50
414
1FSW-24-38X5.0PM
1FSW-24-48.3X8.0PM
1FSW-24-48.3X8.8PM
1.1/2′′
38
48.3
48.3
60
12.57
5.0
8.0
8.8
63.5
FS-24
M16X55
M16X55
M16X55
414
1FSW-32-60.3X10.0PM
1FSW-32-60.3X12.5PM
2′′
60.3
60.3
70
12.57
10.0
12.5
79.4
FS-32
M20X70
M20X70
414
