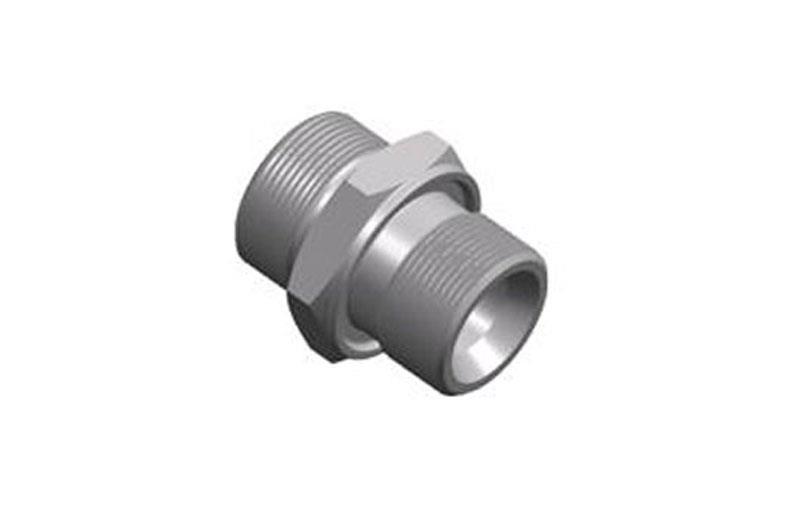

1CB-WD/RN
1DB-WD/RN
英管螺纹胶垫密封柱端或60°锥密封



product details

系列 代号 RAPT NO. 螺纹 THREAD 管子外径 TUBE O.D 尺寸 DIMENSIONS 重量
克/件 		工作压力 (bar)
T1 T2 D1 D2 L1 L2 L3 L4 S1 S2
L 1CB-12-02WD M12X1.5 G1/8＂X28 06 14 23.5 8.5 8 23 14 14 13 500
1CB-12-04WD M12X1.5 G1/4＂X19 06 19 29 10 12 25 19 14 28 500
1CB-12-06WD M12X1.5 G3/8＂X19 06 22 30.5 11.5 12 26 22 14 44 420
1CB-12-08WD M12X1.5 G1/2＂X14 06 27 33 12 14 27 27 14 61 400
1CB-14-02WD M14X1.5 G1/8＂X28 08 14 24.5 9.5 8 24 14 17 16 500
1CB-14-04WD M14X1.5 G1/4＂X19 08 19 29 10 12 25 19 17 27 500
1CB-14-06WD M14X1.5 G3/8＂X19 08 22 30.5 11.5 12 26 22 17 45 420
1CB-14-08WD M14X1.5 G1/2＂X14 08 27 33 12 14 27 27 17 74 400
1CB-16-02WD M16X1.5 G1/8＂X28 10 14 25.5 10.5 8 25 17 19 21 500
1CB-16-04WD M16X1.5 G1/4＂X19 10 19 30 11 12 26 19 19 29 500
1CB-16-06WD M16X1.5 G3/8＂X19 10 22 31.5 12.5 12 27 22 19 43 420
1CB-16-08WD M16X1.5 G1/2＂X14 10 27 34 13 14 28 27 19 71 400
1CB-18-02WD M18X1.5 G1/8＂X28 12 14 26.5 11.5 8 26 19 22 26 420
1CB-18-04WD M18X1.5 G1/4＂X19 12 19 31 12 12 27 19 22 31 400
1CB-18-06WD M18X1.5 G3/8＂X19 12 22 31.5 12.5 12 27 22 22 41 420
1CB-18-08WD M18X1.5 G1/2＂X14 12 27 34 13 14 28 27 22 67 400
1CB-18-12WD M18X1.5 G3/4＂X14 12 32 37 14 16 29 32 22 118 250
1CB-22-06WD M22X1.5 G3/8＂X19 15 22 32.5 13.5 12 29 24 27 54 400
1CB-22-08WD M22X1.5 G1/2＂X14 15 27 35 14 14 29 27 27 72 400
1CB-22-12WD M22X1.5 G3/4＂X14 15 32 38 15 16 30 32 27 116 250
1CB-26-06WD M26X1.5 G3/8＂X19 18 22 33.5 14 12 30 27 32 66 400
1CB-26-08WD M26X1.5 G1/2＂X14 18 27 36 14.5 14 31 27 32 71 400
1CB-26-12WD M26X1.5 G3/4＂X14 18 32 38 14.5 16 31 32 32 110 250
1CB-30-08WD M30X2 G1/2＂X14 22 27 38 16.5 14 33 32 36 91 250
1CB-30-12WD M30X2 G3/4＂X14 22 32 40 16.5 16 33 32 36 102 250
1CB-30-16WD M30X2 G1＂X11 22 40 43 17.5 18 34 41 36 189 250
1CB-36-12WD M36X2 G3/4＂X14 28 32 41 17.5 16 34 41 41 159 250
1CB-36-16WD M36X2 G1＂X11 28 40 43 17.5 18 34 41 41 170 250
1CB-36-20WD M36X2 G1.1/4＂X11 28 50 46 18.5 20 35 50 41 316 250
1CB-45-16WD M45X2 G1＂X11 35 40 46 17.5 18 39 46 50 226 250
1CB-45-20WD M45X2 G1.1/4＂X11 35 50 48 17.5 20 39 50 50 272 250
1CB-45-24WD M45X2 G1.1/2＂X11 35 55 52 19.5 22 41 55 50 423 250
1CB-52-16WD M52X2 G1＂X11 42 40 48 19 18 42 55 60 324 250
1CB-52-20WD M52X2 G1.1/4＂X11 42 50 50 19 20 42 55 60 348 250
1CB-52-24WD M52X2 G1.1/2＂X11 42 55 52 19 22 42 55 60 343 250
S 1DB-14-02WD M14X1.5 G1/8＂X28 06 14 27.5 12.5 8 27 14 17 21 500
1DB-14-04WD M14X1.5 G1/4＂X19 06 19 32 13 12 28 19 17 35 800
1DB-14-06WD M14X1.5 G3/8＂X19 06 22 34.5 15.5 12 30 22 17 52 630
1DB-14-08WD M14X1.5 G1/2＂X14 06 27 39 18 14 33 27 17 83 630
1DB-16-04WD M16X1.5 G1/4＂X19 08 19 34 15 12 30 19 19 41 800
1DB-16-06WD M16X1.5 G3/8＂X19 08 22 34.5 15.5 12 30 22 19 57 800
1DB-16-08WD M16X1.5 G1/2＂X14 08 27 39 18 14 33 27 19 89 630
1DB-18-04WD M18X1.5 G1/4＂X19 10 19 34 14.5 12 31 19 22 42 800
1DB-18-06WD M18X1.5 G3/8＂X19 10 22 34.5 15 12 31 22 22 55 800
1DB-18-08WD M18X1.5 G1/2＂X14 10 27 39 17.5 14 34 27 22 97 630
1DB-20-04WD M20X1.5 G1/4＂X19 12 19 36 16.5 12 33 22 24 61 630
1DB-20-06WD M20X1.5 G3/8＂X19 12 22 36.5 17 12 33 22 24 62 630
1DB-20-08WD M20X1.5 G1/2＂X14 12 27 39 17.5 14 34 27 24 99 630
1DB-22-06WD M22X1.5 G3/8＂X19 14 22 38.5 18.5 12 36 24 27 74 420
1DB-22-08WD M22X1.5 G1/2＂X14 14 27 41 19 14 37 27 27 96 630
1DB-22-12WD M22X1.5 G3/4＂X14 14 32 45 21 16 39 32 27 138 630
1DB-24-06WD M24X1.5 G3/8＂X19 16 22 38.5 18 12 36 27 30 83 420
1DB-24-08WD M24X1.5 G1/2＂X14 16 27 41 18.5 14 37 27 30 91 420
1DB-24-12WD M24X1.5 G3/4＂X14 16 32 45 20.5 16 39 32 30 152 420
1DB-30-08WD M30X2 G1/2＂X14 20 27 45 20.5 14 42 32 36 142 420
1DB-30-12WD M30X2 G3/4＂X14 20 32 47 20.5 16 42 32 36 149 420
1DB-30-16WD M30X2 G1＂X11 20 40 51 22.5 18 44 41 36 265 420
1DB-30-20WD M30X2 G1.1/4＂X11 20 50 53 22.5 20 44 50 36 404 420
1DB-36-08WD M36X2 G1/2＂X14 25 27 49 23 14 47 41 46 228 420
1DB-36-12WD M36X2 G3/4＂X14 25 32 51 23 16 47 41 46 255 420
1DB-36-16WD M36X2 G1＂X11 25 40 53 23 18 47 41 46 266 420
1DB-36-20WD M36X2 G1.1/4＂X11 25 50 55 23 20 47 50 46 411 420
1DB-36-24WD M36X2 G1.1/2＂X11 25 55 60 26 22 50 55 46 549 315
1DB-42-16WD M42X2 G1＂X11 30 40 55 23.5 18 50 46 50 344 420
1DB-42-20WD M42X2 G1.1/4＂X11 30 50 57 23.5 20 50 50 50 418 420
1DB-42-24WD M42X2 G1.1/2＂X11 30 55 62 26.5 22 53 55 50 530 315
1DB-52-20WD M52X2 G1.1/4＂X11 38 50 62 26 20 57 55 60 575 420
1DB-52-24WD M52X2 G1.1/2＂X11 38 55 64 26 22 57 55 60 563 420
