Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

重役型油吸入排放管，特别用于油罐车，油槽船；耐真空；抗静电外层；广泛用于各种石油产品，芳香族化合物含量可高达50%

技术参数

内 层：黑色，光滑丁腈橡胶
增强层：高强度合成芯，螺旋钢丝及抗静电铜线
外层：黑色，光滑氯丁二烯橡胶，耐磨损，臭氧，侵蚀，油滞
工作温度：-40℃到+100℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 橙色

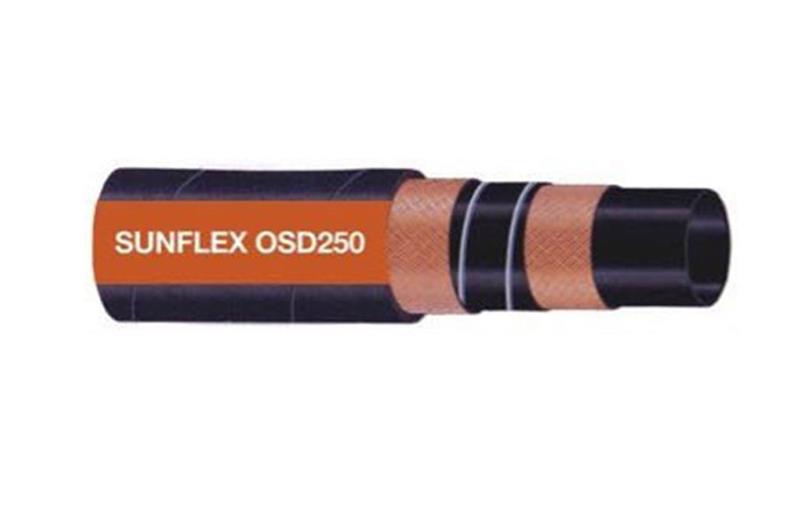

字样：SUNFLEX OSD 250 OIL SUCTION/DENLIVERY HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
OSD250-0200 51 2 65 2-9/16 17 250 51 750 1.81 1.24 200
OSD250-0250
 63 2-1/2 80 3-3/16 17 250
 51 700 2.78 1.87 250
OSD250-0300
 76 3 93 3-21/32 17 250
 51 700 2.93 2.01 300
OSD250-0400
 102 4 120 4-47/64 17
 250
 51
 700 4.95 3.36 440
OSD250-0500
 127 5 149 5-7/8 17
 250
 51
 700 6.60 4.43 580
OSD250-0600
 152 6 174 6-55/64 17
 250
 51
 700 7.80 5.24 700
OSD250-0800
 203 8 227 8-15/16 17
 250
 51
 750 15.96 10.72 1300
OSD250-1000
 254 10 288 11-11/32 17
 250
 51
 750 22.28 14.97 1800
OSD250-1200
 305 12 343 13-1/2 17
 250
 51
 750 30.06 20.18 2300
