Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
技术参数

内层:黑色耐油光滑丁晴橡胶
加强层:高强度合成橡芯,螺旋钢丝及导电铜线
外层:黑色特殊合成橡胶、耐磨耐臭氧、耐焦油
温度范围:-40℃到100℃
管长:61米,其他长度可按要求提供
印记:棕色

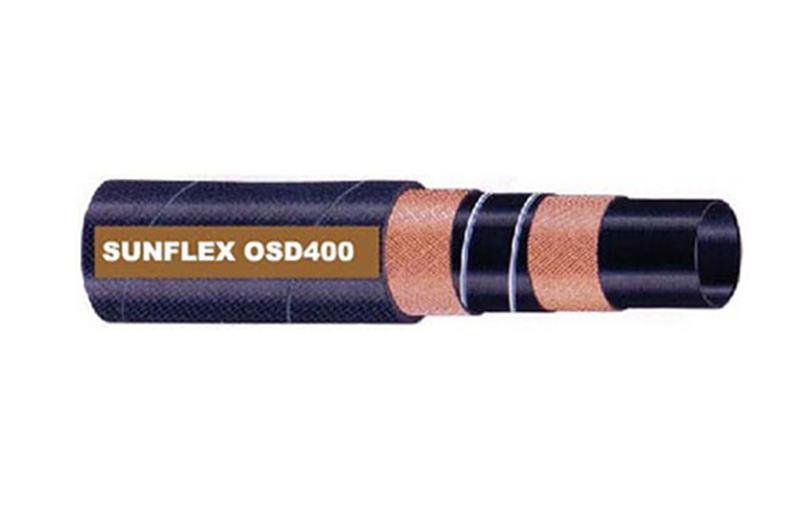

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm bar psi bar psi kg/m mm
OSD400-0300 76.2 3 99.0 27 400 81 1200 4.46 230
OSD400-0400
101.6 4 126.0 27 400
81 1200 6.38 400
OSD400-0500
127.0 5 156.0 27 400
81 1200 8.89 550
