应用

油罐车用油吸入排放管；耐真空；用于各种石油产品。芳香族化合物含量可高达50%

技术参数

内 层：黑色，光滑丁腈橡胶
增强层：高强度合成芯，螺旋钢丝及抗静电铜线
外层：黑色，光滑氯丁二烯橡胶，耐磨损，臭氧，侵蚀，油滞
工作温度：-40℃到+100℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 红色

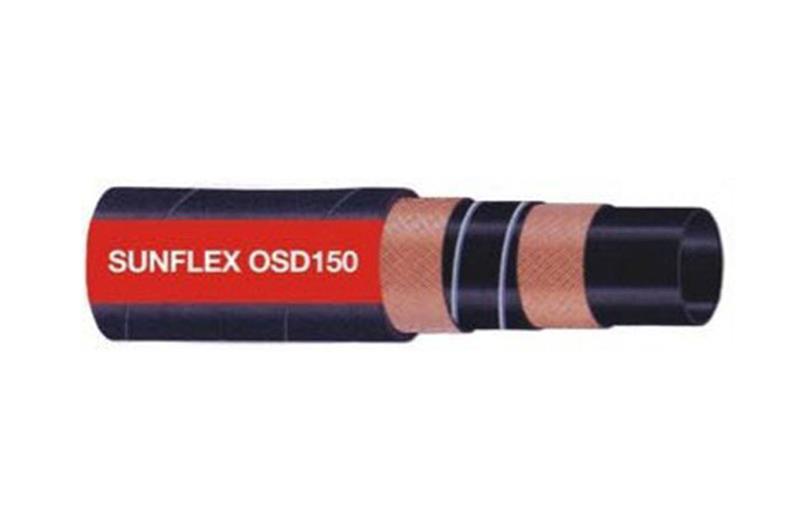

字样：SUNFLEX OSD 150 OIL SUCTION/DENLIVERY HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
OSD150-0100 25 1 35 1-3/8 10 150 30 450 0.79 0.54 75
OSD150-0125
 32 1-1/4 45 1-21/32 10
 150
 30
 450
 0.97 0.66 85
OSD150-0150
 38 1-1/2 51 1-31/32 10
 150 30
 450
 1.40 0.96 110
OSD150-0175
 45 1-3/4 57 2-15/64 10
 150
 30
 450
 1.43 0.98 150
OSD150-0200
 51 2 62 2-13/32 10 150
 30
 450
 1.81 1.24 170
OSD150-0250
 63 2-1/2 77 3-1/32 10 150 30 450 2.28 1.56 210
OSD150-0300
 76 3 92 3-5/8 10 150 30 450 2.93 2.01 230
OSD150-0350
 90 3-1/2 104 4-3/32 10
 150
 30
 450
 3.46 2.37 300
OSD150-0400
 102 4 120 4-47/64 10
 150
 30
 450
 4.95 3.36 400
OSD150-0500
 127 5 147 5-51/64 10
 150
 30
 450
 6.60 4.43 550
OSD150-0600
 152 6 172 6-25/32 10
 150
 30
 450
 7.80 5.24 675
OSD150-0800
 203 8 227 5-15/16 10
 150
 30
 450
 9.00 6.05 1000
OSD150-1000
 254 10 284 11-7/64 10
 150
 30
 450
 20.03 13.46 1800
OSD150-1200
 305 12 341 13-7/16 10
 150
 30
 450
 28.50 19.15 2300
