应用

重役型吸入排放用管，适用于油罐车输油管。能承受真空压力，抗静电。广泛用于各种石油产品。

技术参数

内 层：黑色，光滑丁晴橡胶
增强层：高强合成芯，螺旋钢丝，抗静电铜线
外层：黑色，光滑氯丁二烯橡胶，耐磨损，臭氧，侵蚀，焦油，油渍，抗静电
工作温度：-40℃到+100℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 紫色

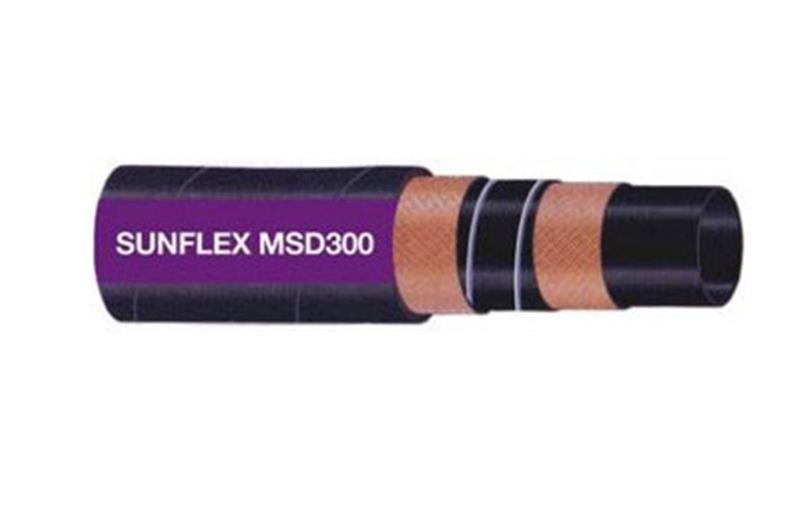

字样： SUNFLEX MSD 300 HEAVY DUTY OIL/WATER SUCTION HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
MSD300-0200 51 2 65 2-9/16 20 300 60 900 1.81 1.24 200
MSD300-0250
 63 2-1/2 80 3-3/16 20
 300
 60
 900
 2.78 1.87 250
MSD300-0300
 76 3 93 3-21/32 20
 300
 60
 900
 2.93 2.01 300
MSD300-0400
 102 4 122 4-47/64 20
 300
 60
 900
 4.95
 3.36 440
MSD300-0500
 127 5 147 5-51/64 20
 300
 60
 900
 6.57 4.38 580
MSD300-0600
 152 6 174 6-55/64 20 300 60 900 7.80 5.24 700
MSD300-0800
 203 8 227 5-15/16 20 300 60 900 15.96 10.72 1300
