Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

工矿项目中,泥、泥水混合物,吸入排放用管

技术参数

内 层:黑色、光滑,合成橡胶,耐酸碱度范围PH值5-8
增强层:高强度合成芯及螺旋钢丝
外层:黑色,光滑聚合橡胶,耐侵蚀,耐磨损
工作温度:-40℃到+85℃
管长: 61米(200英尺),其它长度也可以按需求提供
印记: 黄色

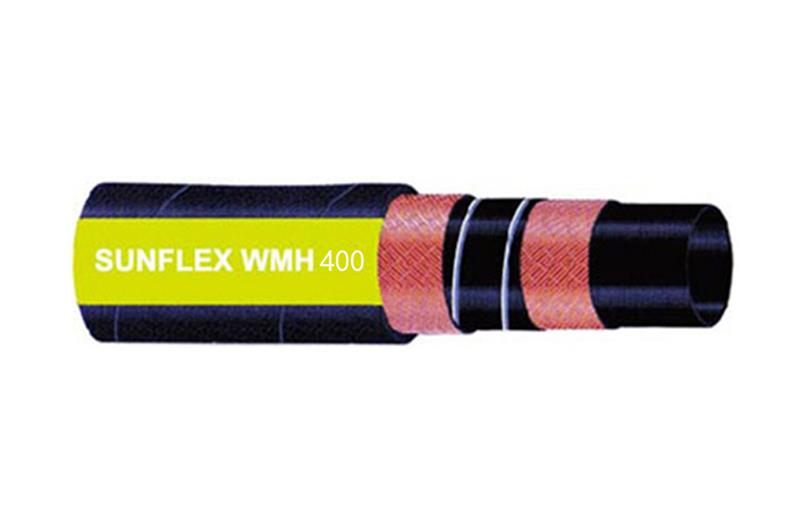

字样:SUNFLEX WMH400 MUD SUCTION/DELIVERY HOSE WPSI 400

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm bar psi bar psi kg/m mm
WMH400-0300 76 3 97 26.7 400 80 1200

WMH400-0400 102 4 126 26.7 400 80 1200

WMH400-0600 152 6 182 26.7 400 80 1200

WMH400-0800 203 8 237 26.7 400 80 1200
