Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
用于污水系统的高压水清洁和冲洗
温度范围：-40℃（-40℉）到+70℃（158℉）

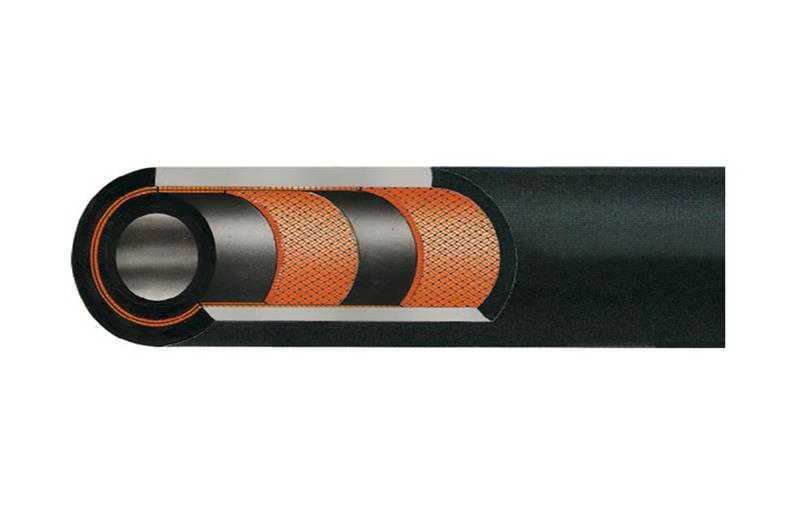

内胶： 特种合成橡胶
加强层：高强度合成纤维纺织物
外胶： 耐磨损、石油和天气光滑,特殊的合成橡胶

product details

产品型号
（Part No） 		内径（I.D.) 外径（O.D.） 工作压力（WP） 爆破压力（BP） 重量（W） 弯曲半径（BR） 长度（L）
mm inch mm inch bar psi bar psi kg/m lbs/ft mm m
ESH3600-0050 12.7 1/2 25.0 1 250 3625 625 9065 0.44 0.30 65 max.240
ESH3600-0063 16.0 5/8 28.0 1 19/64 250 3625 625 9065 0.48 0.32 75 max.240
ESH3600-0075 19.0 3/4 31.6 1 1/4 250 3625 625 9065 0.56 0.38 90 max.240
ESH3600-0100 25.4 1 39.3 1 11/16 250 3625 625 9065 0.78 0.52 100 max.240
ESH3600-0125 31.8 1 1/4 48.0 1 57/64 250 3625 625 9065 1.06 0.71 130 max.200
ESH3600-0150 38.1 1 1/2 54.0 2 1/8 250 3625 625 9065 1.25 0.84 150 max.200
