总成订货型号及说明
订货请参考我们的总成订货型号,以便沟通

product details

总成订货型号及说明

代号:

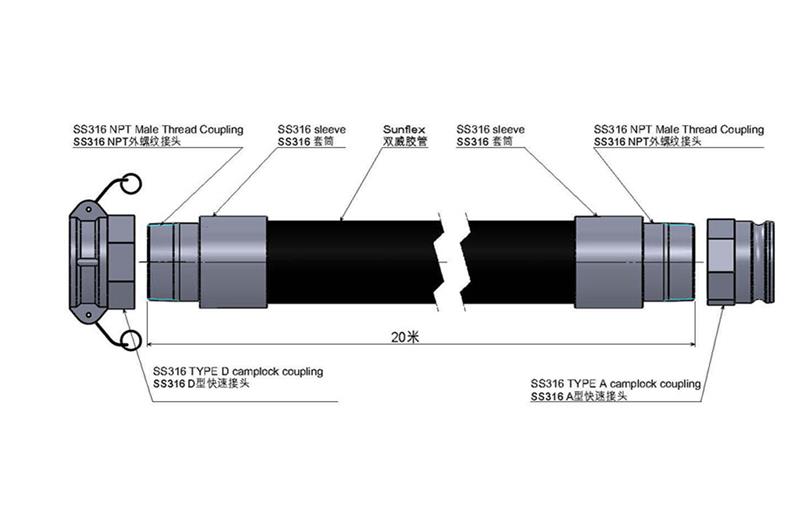

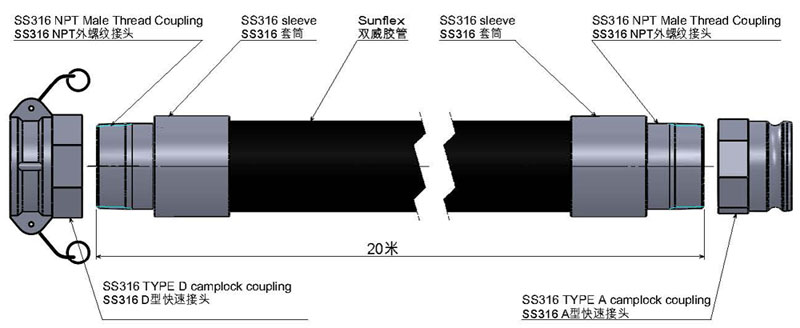

OSD150-0400×20m OAL C/W 4"NPT Male SS316 crimp-on on both end
add 4" TYPE D SS316 camplock coupling one end
4" TYPE A SS316 camplock coupling other end
示例: OSD150-0400 × 20m OAL C/W 4"NPT Male SS316 crimp-on on both end
1 2 3 4 5 6
add 4" TYPE D SS316 camplock coupling one end
7 8
4" TYPE A SS316 camplock coupling other end
9 10
1、 OSD150-0400为所选用的胶管型号
2、 20m表示长度为20米
3、 OAL表示前面的20米为总成长度;假如要表示胶管长度,这里写HL
4、 表示材料为SS316的4"NPT外螺纹接头;假如材料为碳钢时,可以省略
5、 crimp-on表示总成制作方式为扣压;假如内扩用expansion表示,铸铁卡箍用Double Clamps表示,DIN2817卡箍用Hoop tight表示,蒸汽管管夹用Hoop tight表示
6、 表示总成两端相同
7、 表示材料为SS316的TYPE D快速接头
8、 表示其中一端
9、 表示材料为SS316的TYPE A快速接头
10、 表示另一端
