Recommended for air,water,oil,gas and mud service to 15,000 PSI NSCWP.

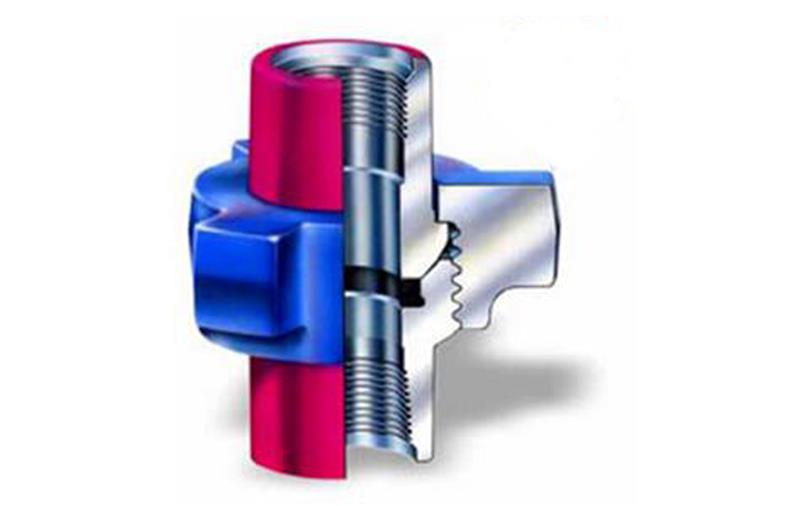

This union has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence.
The lip-type ring also provides a pressure seal and protection for metal-to-metal seating surface and are recommended for manifold and truck mounting or other installations where high pressure is encountered.

1. All weights are approximate
2. NSCWP---Non shock cold working pressure
3. Derates to 10,000 PSI WP for sour service

product details

Part NO Lenght Nut Radius Weight Lenght BUTT.WELD
XX HVX
Total (inch) CTR.BR. (inch) inch Kg
FIG1502-0100 4 3/8 1/4 2 3/4 3.82 -
FIG1502-0200 7 1/4 4 9.54 6 1/4
FIG1502-0300 7 5/8 3/8 4 13/16 14.10 5 1/4
FIG1502-0400 8 1/2 1/2 6 1/16 34.00 -
FIG1502-0500 9 7/64 - 6 45/64 44.40 -
