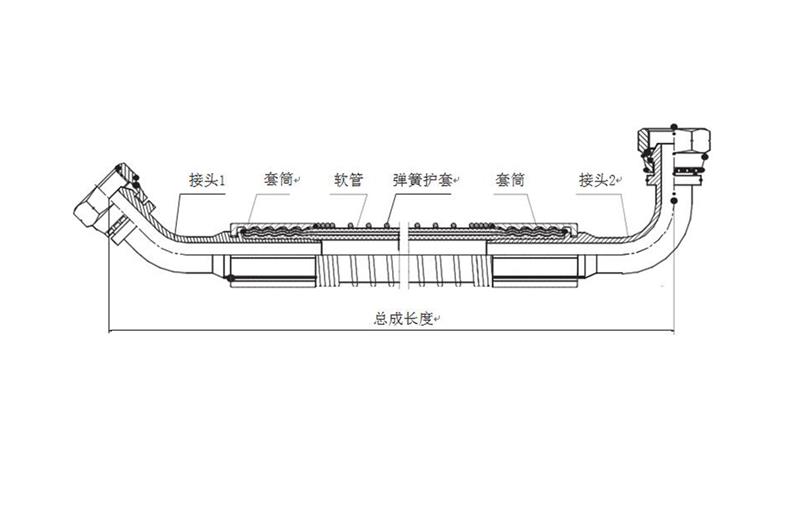

如图示,液压软管总成由软管、接头1、接头2、套筒扣压而成。接头1 与接头2 可以相同,也可以不同,
可以是直芯也可以是弯芯,弹簧护套可以不用。

product details

软管总成的订货代号按下述方法表示:

订货示例1:22641-08-08/22691-12-08XR1T-08X1000V90/SSX+RS;
当无装配角、自然弯曲方向或弹簧护套时,则代号中这些内容可省去不写。
订货示例2:当接头1 与接头2 相同时,只标一个接头的代号。
22691-08-08XR1T-08X1000V90

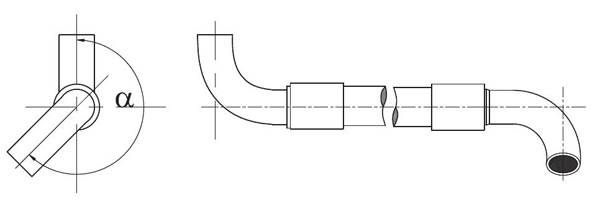

当总成的两端接头均为弯接头时,装配时两弯接头间有一角度关系。测量时,把软管总成拉直,并沿直线方
向看,把弯接头1 置垂直向上方向,按顺时针测量弯接头2 与垂直放置的弯接头1 之间的夹角,即为软管总成的
装配角,用V表示。如图所示,例当装配角α为225°时,标记为V225。
