温度范围：-40°C（-40°F）到+100°C（+212°F）
应 用：高压液压油、燃料油、润滑油、磷酸酯化学物、水、水基化学物及工业气体等；
水及水基油、温度最高可达70°C；
氩、氮气、二氧化碳、氦气等工业气体，请参照BS6596的安全标准；

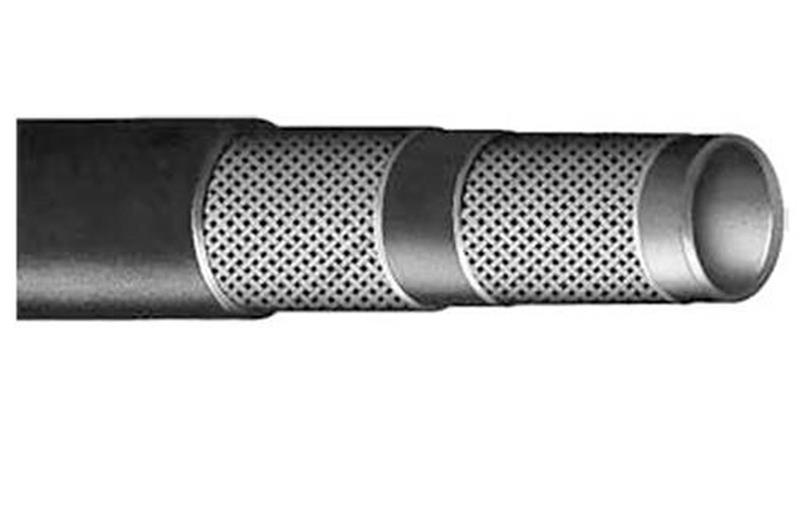

内 层：热塑性聚酯弹性体（TPEE）
加 强 层：聚酯纤维编织层
外 层：黑色聚氨酯，表面有微型针孔
印 记：白色
字 样：SUNFLEX SAE 100 R8 THERMOPLASTIC HOSE

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
R8-03-SF-PP 5 -03 3/16 5.1 10.4 34.5 138.0 38 0.08
R8-04-SF-PP
 6 -04 1/4 6.5 12.3 34.5 138.0 51 0.11
R8-06-SF-PP
 10 -06 3/8 9.8 15.9 27.5 110.0 64 0.15
R8-08-SF-PP
 12 -08 1/2 13.0 19.7 24.0 96.5 82 0.20
R8-12-SF-PP
 19 -12 3/4 19.4 28.7 15.5 62.0 200 0.422
