温度范围：-73°C（-99°F）到+260°C（+500°F）
应 用：适用于恶劣环境及高温环境，具有良好的抗张力，耐绝大多数化学物；

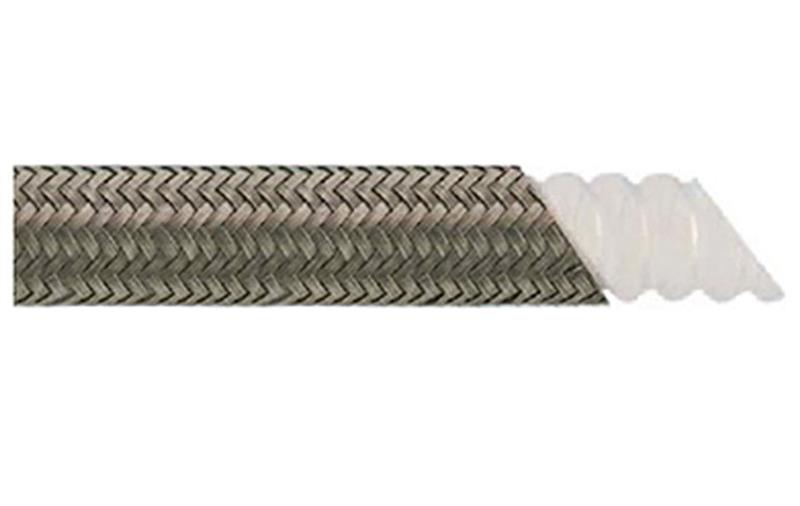

内 层：半透明、波纹状、聚四氟乙烯（PTFE）
外 层：AISI 304不锈钢丝编织层，防静电。

product details

软管代号 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径
PART NO. inch min mm max mm min mm max mm bar bar mm
CLWB109-06 3/8 10.0 11.0 15 16.2 130 520 20
CLWB109-08 1/2 13.0 14.0 18 19 100 400 25
CLWB109-12 3/4 15.9 20.5 26 27.5 70 280 65
CLWB109-16 1 25.5 26.5 33 34.5 55 220 89
