温度范围：-73°C（-99°F）到+260°C（+500°F）
应 用：适用于恶劣环境及高温环境，耐绝大多数化学物；

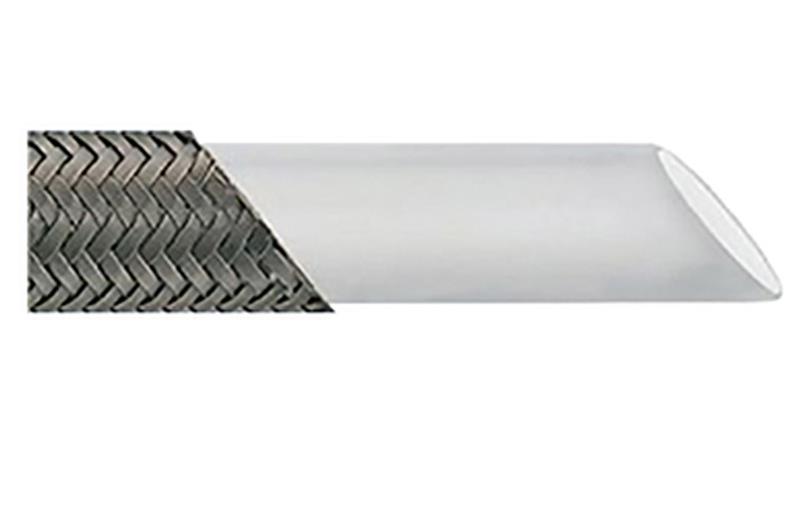

内 层：半透明、光滑、聚四氟乙烯（PTFE）
外 层：AISI 304不锈钢丝编织层，防静电

product details

软管代号 软管尺寸 软管内径 壁厚 软管外径 最大工作压力 最小爆破压力 最小弯曲半径
PART NO. inch min mm max mm mm min mm max mm bar bar mm
TWK-03 1/8 3.30 3.51 0.70 5.84 6.35 275 1100 25
TWK-04 3/16 4.65 5.21 0.70 7.32 8.25 200 800 35
TWK-05 1/4 6.17 6.73 0.70 8.92 9.45 175 700 45
TWK-06 5/16 7.54 8.38 0.70 10.36 11.63 150 600 50
TWK-07
 3/8 9.27 9.78 0.70 12.19 13.21 135 540 55
TWK-08
 13/22 10.08 10.85 0.70 13.03 14.20 130 520 65
TWK-10
 1/2 12.42 13.18 0.70 15.44 16.71 120 480 70
TWK-12
 5/8 15.37 16.38 0.70 18.75 20.02 100 400 130
TWK-14
 3/4 18.62 19.38 0.80 21.59 22.86 90 360 190
TWK-16
 7/8 21.46 22.99 0.80 24.64 26.92 70 280 250
TWK-18
 1 24.64 26.16 0.80 27.81 29.85 65 260 270
TWK-20
 1-1/8 27.81 29.34 1.00 31.95 33.53 55 220 300
