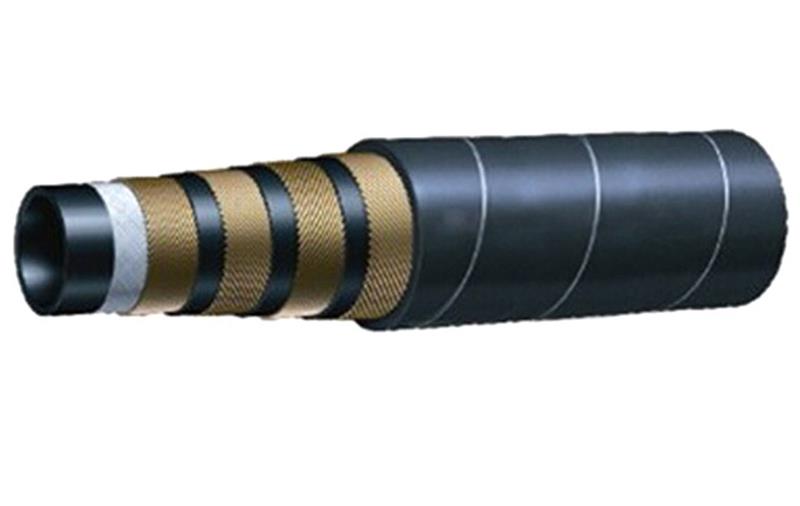

温度范围：-40°C（-40°F）到+100°C（+212°F）+121°C（+250°F）之间
应 用：高压液压油
内 层：耐油合成橡胶
加 强 层：四层高强螺旋型钢丝
外 层：合成橡胶、耐磨损、侵蚀、臭氧
印 记：白色
字 样：SUNFLEX SAE 100 R12/EN 856

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径
PART NO. mm DASH inch mm mm MPa MPa mm
R12B-06 10 -06 3/8 9.5 20.1 27.6 110.0 127
R12B-08 12 -08 1/2 12.7 23.6 27.6 110.0 178
R12B-10 16 -10 5/8 15.9 27.2 27.6 110.0 203
R12B-12 19 -12 3/4 19.0 30.5
 27.6 110.0 241
R12B-16 25 -16 1 25.4 37.8 27.6 110.0 305
R12B-20 32 -20 11/4 31.8 46.8 20.7 82.5 419
R12B-24 38 -24 11/2 38.1 53.3 17.2 68.5 508
R12B-32
 51 -32 2 50.8 66.5 17.2 68.5 635
