Our company provide SUNFLEX brand High pressure braided hose, high pressure spiral hose, produce and develop hose crimping joints, transition joints, stainless steel joints and all kinds of non-standard joints. Being widely used in Construction Machinery, tunnel construction machinery, special vehicle, oil, electric power, mine, metallurgy, shipbuilding,…etc.

Hydr

Industry search
温度范围：-40°C（-40°F）到+120°C（+248°F）
应 用：中压液压油、空气、水

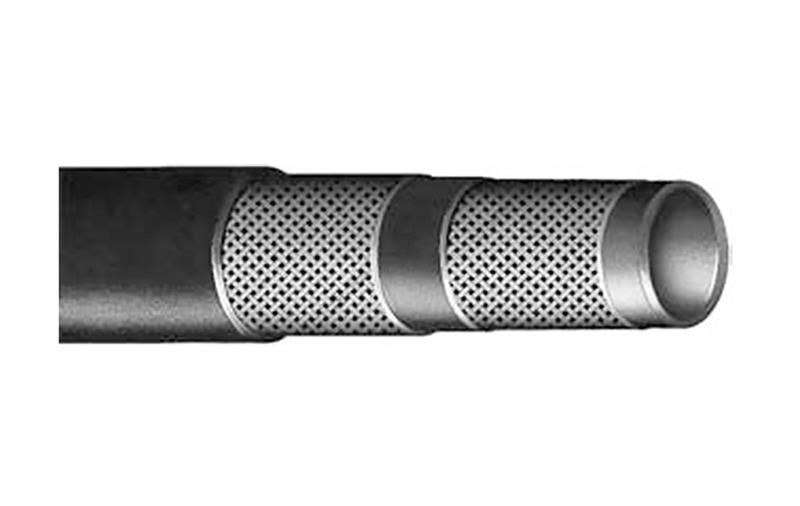

内 层：耐油合成橡胶
加 强 层：两层织物编织
外 层：合成橡胶 耐磨损、侵蚀、臭氧
印 记：白色
字 样：SUNFLEX SAE 100 R3/EN 854

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
R3-04 6 -4 1/4 6.4 14.3 8.6 34.5 76 0.180
R3-05 8 -5 5/16 7.9 17.5 8.3 33.1 10.2 0.265
R3-06 10 -6 3/8 9.5 19.0 7.8 31.0 10.2 0.300
R3-08 12 -8 1/2 12.7 23.8 6.9 27.6 127 0.430
R3-10 16 -10 5/8 15.9 27.0 6.0 24.1 140 0.500
R3-12 19 -12 3/4 19.0 31.8 5.2 20.7 152 0.705
R3-16 25 -16 1 25.4 38.1 3.9 15.5 203 0.845
R3-20
 32 -20 1-1/4 31.8 44.5 2.6 10.3 254 \
R3-24
 38 -24 1-1/2 38.1 50.8 1.7 6.9 306 \
R3-32
 51 -32 2 50.8 64.0 1.5 6.0 410 \
