Hydraulic Parts

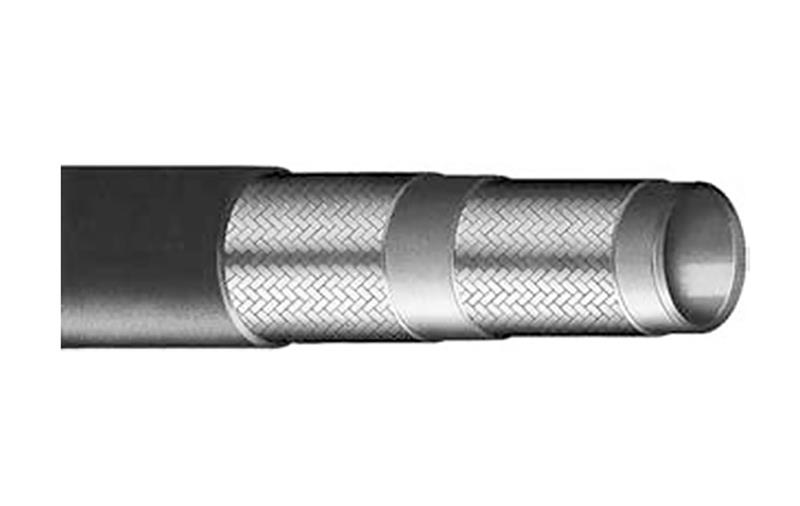

Our company provide SUNFLEX brand High pressure braided hose, high pressure spiral hose, produce and develop hose crimping joints, transition joints, stainless steel joints and all kinds of non-standard joints. Being widely used in Construction Machinery, tunnel construction machinery, special vehicle, oil, electric power, mine, metallurgy, shipbuilding,…etc.

Hydr

Industry search
内胶层：合成橡胶--耐油、矿物、植物
加强层：两层高强度钢丝编织
外 层：合成橡胶--耐油、磨损、天气
应 用：用于高压液压系统、矿物、植物润滑油

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
2K-04-SF-S 6 -04 1/4 6.4 13.1 45.0 195.0 45 0.285
2K-05-SF-S 8 -05 5/16 8.0 15.0 42.0 172.5 60 0.330
2K-06-SF-S 10 -06 3/8 9.5 17.1 38.5 165.0 70 0.440
2K-08-SF-S 12 -08 1/2 12.7 20.3 34.5 140.0 90 0.565
2K-10-SF-S 16 -10 5/8 16.0 23.7 29.0 120.0 130 0.660
2K-12-SF-S 19 -12 3/4 19.0 27.7 28.0 120.0 160 0.835
2K-16-SF-S 25 -16 1 25.4 35.6 20.0 90.0 210 1.215
