温度范围：-40°C（-40°F）到+120°C（+248°F）
应 用：液压油、空气、汽油、燃料、润滑油

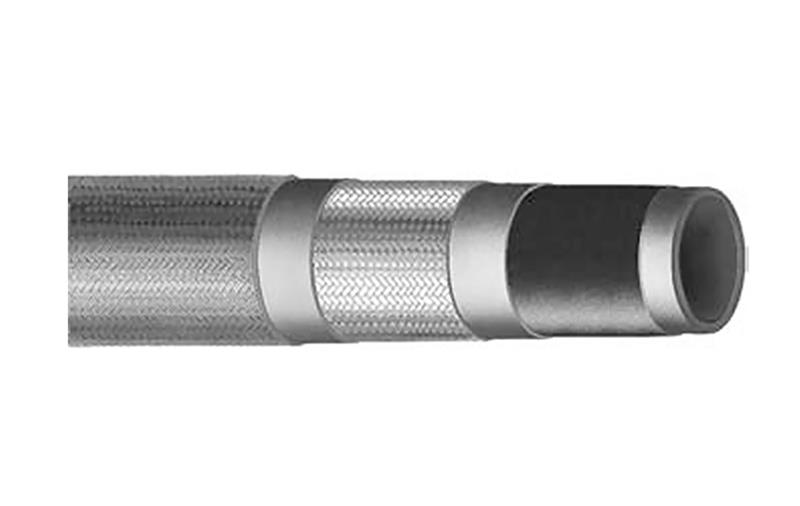

内 层：耐油合成橡胶
加 强 层：两层织物编织夹一层钢丝
外 层：内嵌合成橡胶的织物编织外层
印 记：白色
字 样：SUNFLEX SAE 100 R5/EN 853

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
R5-04 6 -4 3/16 4.8 0.52 20.7 82.8 76 0.250
R5-05 8 -5 1/4 6.4 0.58 20.7 82.8 86 0.290
R5-06 10 -6 5/16 7.9 0.68 15.5 62.0 102 0.355
R5-08 12 -8 13/32 10.3 0.77 13.9 55.6 117 0.415
R5-10 16 -10 1/2 12.7 0.92 12.1 48.4 140 0.570
R5-12 19 -12 5/8 15.9 1.08 10.3 41.2 165 0.705
R5-16 25 -16 7/8 22.2 1.23 5.5 22.0 187 0.700
R5-20 32 -20 1-1/8 28.6 1.50 4.3 17.2 229 0.925
R5-24 38 -24 1-3/8 34.9 1.75 3.4 13.6 267 1.150
R5-32 51 -32 1-13/16 46.0 2.23 2.4 9.6 337 1.390
R5-40 64 -40 2-3/8 60.3 2.88 2.4 9.6 610 2.305
